Count on Flow

High quality measuring systems, worldwide service network and on-site calibrations. Flow measuring systems for mobile delivery units, stationary filling systems and LNG and hydrogen vehicle fueling.

Flow Expertise

Every year Flow produces > 1000 durable, reliable and efficient measuring systems and undertakes > 3000 calibrations at customer sites. Already a significant player across Germany and Europe, Chart's global network has enabled successful expansion into Latin America, Malaysia, China, Russia and the Middle East.


We come to you - FlowMass is a mobile calibration system that allows us to recalibrate all different types and brands of flow meters accurately and at your site, saving you time and money. A typical calibration with FlowMass takes only 45 minutes.

Total Service

Our commitment to service is absolute. Complete aftermarket packages include periodic calibration and accuracy verification of flow metering devices together with routine maintenance, operator training and installation as required.

MiniBulk Distribution System (MBDS)

Specifically designed for fast filling of CO2 tanks in city center and residential areas where access is restricted to conventional tankers and/or associated noise pollution is a nuisance or prohibits deliveries out of hours.


DynaFlow® 3000

Fast, accurate and reliable fueling of LNG vehicles.


Flow Measurement for Mobile Delivery Units

Flow measuring systems are CE marked and approved by European Measuring Instruments Directive (MID), International Organization of Legal Metrology (OMID), Physikalisch-Technische Bundesanstalt (PTB Germany) and other relevant country specific control bodies.

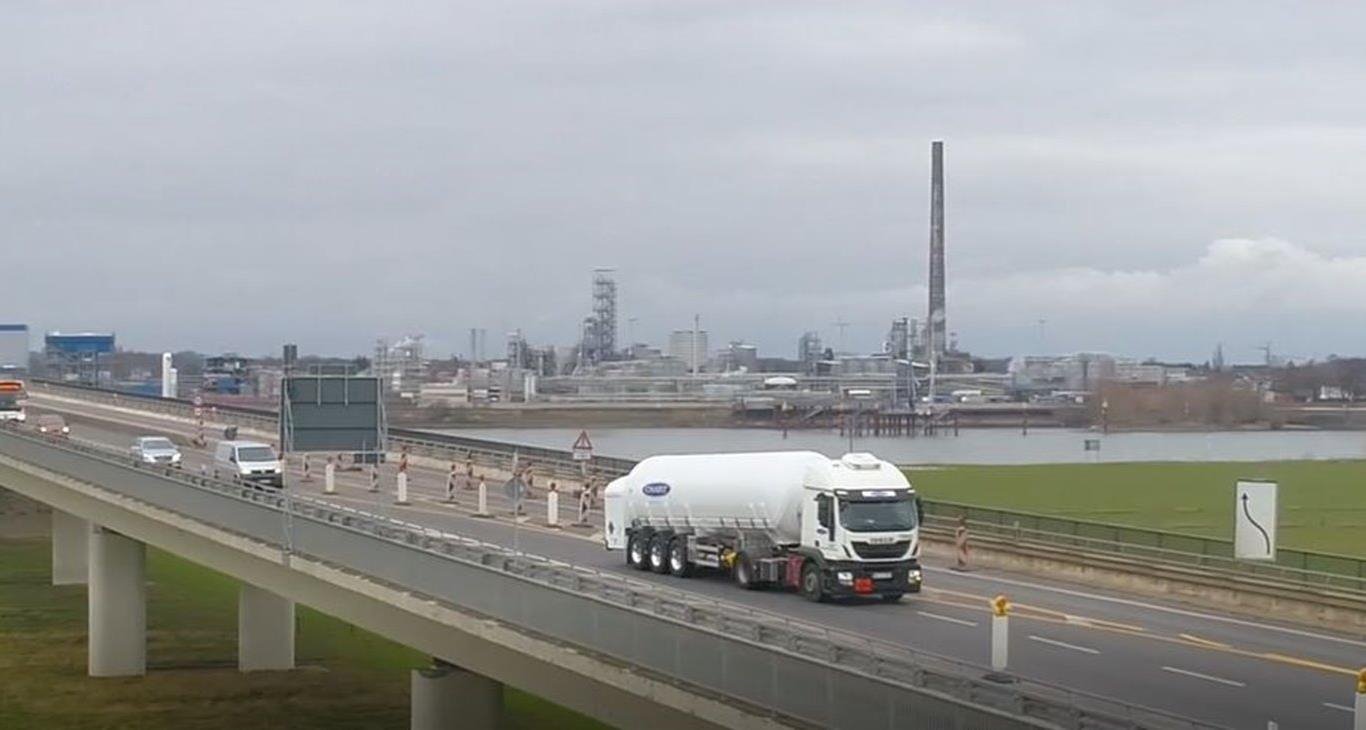

flow measurement liquid gas tanker


The Flowcom® 3000 Flow Meter System is at the heart of our measuring devices for liquid nitrogen, argon, oxygen, carbon dioxide, LNG and now includes both liquid and gaseous hydrogen. The metering section contains no moving parts, is maintenance free and comes with a lifetime guarantee.

  • Measures standard flow rates from 1,000 to 75,000 kgs/hr (2,200 to 154,000 lbs/hr)
  • Internal memory capable of logging more than 4000 deliveries
  • Bluetooth transfer of individual data records
  • Back-up system preserves data even in the event of a total power failure
  • Pump Smart feature regulates pump cooling times to protect against pump failure

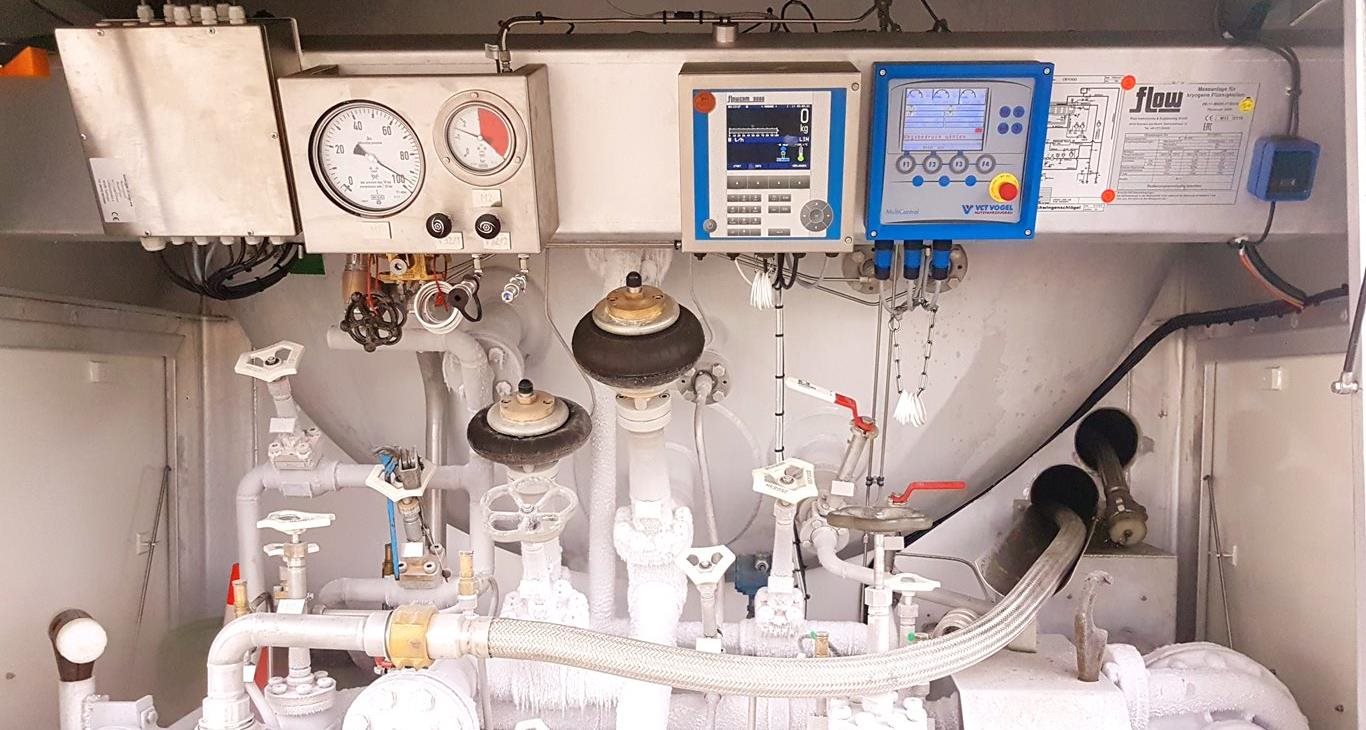

cryogenic flow measurement

The Flowcom® 2000 Flow Meter System is the industry leading flow measurement device for AdBlue and LPG. It shares many of the standard features of the Flowcom 3000 plus the following special adaptations:

  • AdBlue standard flow rate 20,000 to 100,000 kgs/hr (44,000 to 220,000 lbs/hr)
  • LPG standard flow rate 10,000 to 25,000 kgs/hr (22,000 to 55,000 lbs/hr)
  • Gas bubble sensor, optional automatic valve and 2-phase mixture detection for increased measurement accuracy


Flowcom 3000 is at the heart of the metering systems Flow has developed for both gaseous and liquefied hydrogen. Each system is engineered for measuring hydrogen gas or liquid respectively and, currently, are the only systems on the market for mobile delivery units.

liquid hydrogen semi-trailer


Technical Library

View and download sales literature, technical manuals and more.

Dynaflow 3000 Dispenser

Dynaflow 3000 LNG dispenser from Flow Instruments.

Flow Instruments - Calibration and Service

Aftermarket services available from Flow Instruments to keep your flow measurement equipment operating at peak accuracy.

Flow Metering Systems - AdBlue/DEF

Flow metering systems for AdBlue/DEF from Flow Instruments.

Flow Metering Systems - Gaseous Hydrogen

Gaseous hydrogen flow metering systems from Flow Instruments.

Flow Metering Systems - LIN LOX LAR CO2

Flow metering systems for liquid nitrogen, oxygen, argon and carbon dioxide from Flow Instruments.

Flow Metering Systems - Liquid Hydrogen

Liquid hydrogen metering systems from Flow Instruments.

Flow Metering Systems - LNG

LNG metering systems from Flow Instruments.

Flow Metering Systems - LPG

LPG metering systems from Flow Instruments.

Flow Instruments-Liquid Flow Meter Upgrades for Tankers

Data Book for Cryogenic gases and equipment
