Robust, reliable and efficient solutions for heat and power generation from 75kW up to 40MW. Steam turbines as mechanical drive for all rotating equipment such as pumps, compressors and fans from 10kW to 40MW.
Based on the heritage of Kühnle, Kopp & Kausch, Peter Brotherhood and Howden, Chart can meet the need for standard configurable steam turbines to fully custom-engineered solutions. Our machines are used extensively with small-scale industrial power, waste heat recovery, renewable energy systems and as drives for pumps and compressors as condensing and backpressure types.

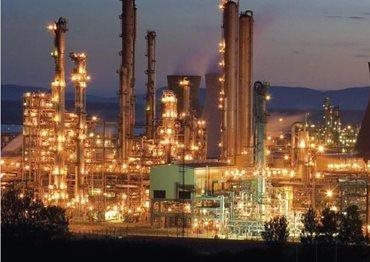

Providing a safe, efficient and low environmental impact power and waste to energy solution across a wide range of industries including chemicals, refining, steel, food and beverage, wood, paper, marine, offshore and more. With >100 years experience and >20,000 installations worldwide, we boast a comprehensive range, extensive capabilities, unrivalled expertise and a proud heritage.
The Base is a single-stage impulse steam turbine acting as a generator drive and specially designed for the 75-1000 kW output range. Featuring a simple, extremely compact design, it has short start-up times and a high degree of operational reliability. The BASE machine is delivered as a pre-tested package unit with turbine, gear, generator, oil unit, control and protection unit as well as circuit breaker, built on a common base frame.
The CORE is a compact solution for up to 6000 kW output range. They are characterised by robust construction and a high degree of operational reliability. They are ideal for saturated steam service. Their suitability for use as condensing or back pressure turbines in combination with various integral gear modules opens up a broad range of applications. As such, they are used for mechanical drives and for power generation. Perfectly suitable for packing companies/EPC who complete the unit for their customers.
The MONO has a power output up to 6000 kW, and the option to have a special multistage condensing module. As a multistage the MONO can reach 24MW. They are characterised by robust construction and a high degree of operational reliability. They are ideal for saturated steam service. Their suitability for use as condensing or back pressure turbines in combination with various gear modules opens up a broad range of applications. This includes applications with stringent standard requirements such as API 611/612 and ATEX.
The TWIN is a compact solution for up to 7000 kW output range. The TWIN series are dual casing turbines on one gearbox, which can run on different steam lines. The TWIN provides the highest cost efficiency and high performance. It allows high heat gradients to be reduced while providing a controlled extraction capability. ATEX version available.
The TRI is a compact solution for up to 12000 kW output range. The TRI allows three turbines to be connected to the integrated gear. Like the TWIN this allows the TRI to run on different stream lines or provides up to two controlled extractions.
The TRI series are dual casing turbines on one gearbox, which can run on different steam lines. The TRI provides the highest cost efficiency and high performance. It allows high heat gradients to be reduced while providing a controlled extraction capability. ATEX version available.

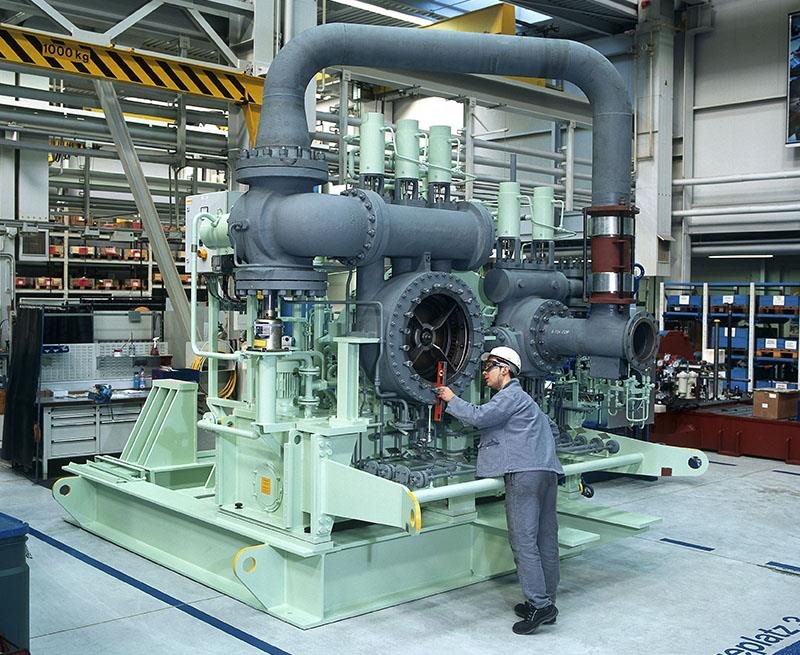

All Peter Brotherhood machines are available as special engineered solutions with no limits in complexity and according to customer specifications. For example, COMBI trains with multiple extractions or EXP (expanders) for gas expansion. The range extends to 40MW and is widely used in applications such as waste heat recovery and offshore oil and gas.
Howden offers a suite of customer support services for all of their products, which ensure customers have full OEM support throughout the entire lifecycle. This incorporates standard maintenance and scheduled overhauls as well as modifications for duty changes or life extension. Through our wider aftermarket organisation, we can offer a wide range of services for turbomachinery regardless of manufacturer.
The Base is a single-stage impulse steam turbine acting as a generator drive and specially designed for the 75-1000 kW output range. Featuring a simple, extremely compact design, it has short start-up times and a high degree of operational reliability. The BASE machine is delivered as a pre-tested package unit with turbine, gear, generator, oil unit, control and protection unit as well as circuit breaker, built on a common base frame.
The CORE is a compact solution for up to 6000 kW output range. They are characterised by robust construction and a high degree of operational reliability. They are ideal for saturated steam service. Their suitability for use as condensing or back pressure turbines in combination with various integral gear modules opens up a broad range of applications. As such, they are used for mechanical drives and for power generation. Perfectly suitable for packing companies/EPC who complete the unit for their customers.
The MONO has a power output up to 6000 kW, and the option to have a special multistage condensing module. As a multistage the MONO can reach 24MW. They are characterised by robust construction and a high degree of operational reliability. They are ideal for saturated steam service. Their suitability for use as condensing or back pressure turbines in combination with various gear modules opens up a broad range of applications. This includes applications with stringent standard requirements such as API 611/612 and ATEX.
The TWIN is a compact solution for up to 7000 kW output range. The TWIN series are dual casing turbines on one gearbox, which can run on different steam lines. The TWIN provides the highest cost efficiency and high performance. It allows high heat gradients to be reduced while providing a controlled extraction capability. ATEX version available.
The TRI is a compact solution for up to 12000 kW output range. The TRI allows three turbines to be connected to the integrated gear. Like the TWIN this allows the TRI to run on different stream lines or provides up to two controlled extractions.
The TRI series are dual casing turbines on one gearbox, which can run on different steam lines. The TRI provides the highest cost efficiency and high performance. It allows high heat gradients to be reduced while providing a controlled extraction capability. ATEX version available.
All Peter Brotherhood machines are available as special engineered solutions with no limits in complexity and according to customer specifications. For example, COMBI trains with multiple extractions or EXP (expanders) for gas expansion. The range extends to 40MW and is widely used in applications such as waste heat recovery and offshore oil and gas.
Howden offers a suite of customer support services for all of their products, which ensure customers have full OEM support throughout the entire lifecycle. This incorporates standard maintenance and scheduled overhauls as well as modifications for duty changes or life extension. Through our wider aftermarket organisation, we can offer a wide range of services for turbomachinery regardless of manufacturer.

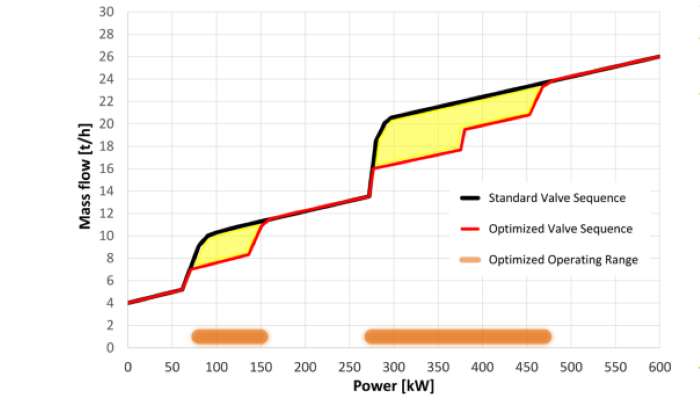

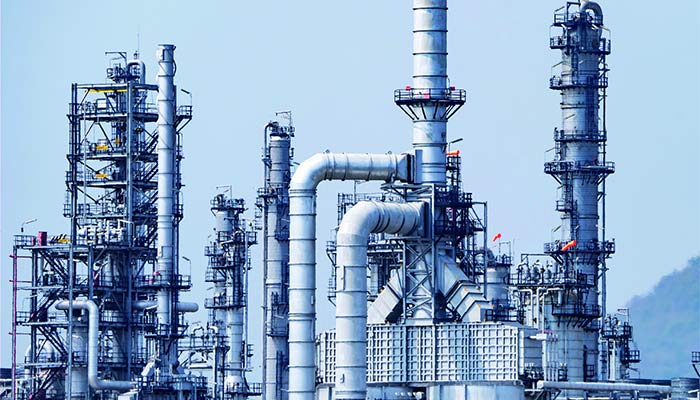

Industrial processes are subject to operational fluctuations where steam turbines need to react flexibly to process changes and to operate efficiently in part load or with fluctuating steam parameters. To optimize part load performance a method is developed to optimize the turbine and the control logic to the actual part load operating condition.

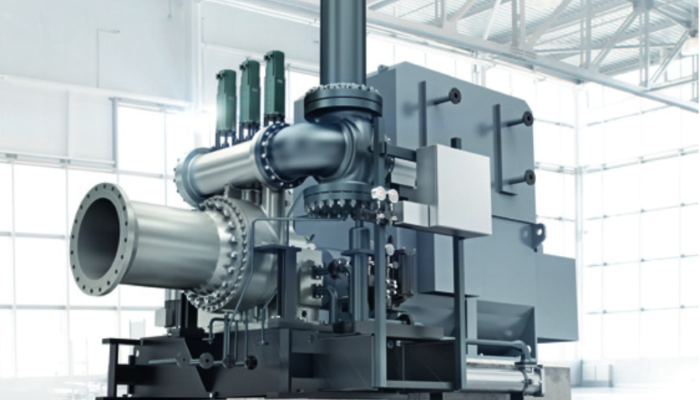

Access and download literature, specifications, case studies and more.
