Chart’s Brazed Aluminum Heat Exchangers (also known as Plate Fin Heat Exchangers) and Cold Boxes are at the heart of low temperature natural gas, air separation and petrochemical processes worldwide.
Building the World's Largest
Continuous innovation and investment in our technology and capacity enables our customers to maximize their opportunities.
Our principal design and manufacturing facility is in La Crosse, Wisconsin. Notable Chart firsts include the introduction of vacuum brazing, Core-in-Kettle®, mercury tolerant construction and Smart Layer®.
Plate fin heat exchangers are essential for cryogenic gas processing including air separation, LNG liquefaction, nitrogen rejection, natural gas liquids (NGL) recovery, propane dehydrogenation, hydrogen liquefaction and recovery and other low temperature natural gas and petrochemical processes.

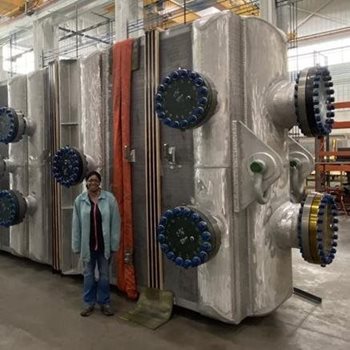

Chart’s proprietary solution combines multiple design, material selection and fabrication features that work in tandem with guard beds to protect against attack. Since pioneering the technology in the 1980s Chart has supplied >800 mercury tolerant units with no reported field failures.

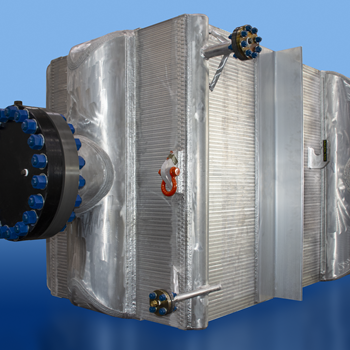

Excessive thermal gradients will weaken the unit’s integrity and can lead to external leaks developing. Typically, because these operating upsets go un-noticed, the leaks manifest without warning. With Smart Layer the leak path is contained and an emergency plant shutdown is avoided.
Service & Support
Chart is dedicated to keeping your BAHX fleets operating with maximum efficiency and longevity. Of course, we’re there for you if things go wrong, but ultimately our focus is a proactive approach to improved plant safety and reliability through increased awareness of best practice, process control, effective personnel training and attention to operating data.
Compact & Highly Efficient

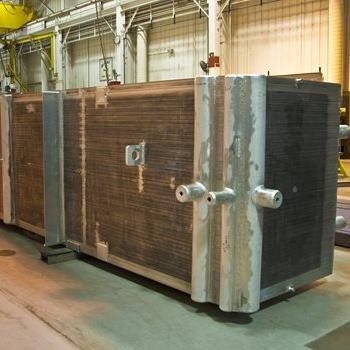

Chart Industries pioneered the use of BAHX for cryogenic gas processing in the 1950s and we’ve produced over 13,000 units since. A Chart BAHX is a highly efficient, all brazed and welded compact heat exchange device that offers distinct advantages versus other heat exchanger types. They are designed in accordance with the world’s pressure vessel codes and deployed globally.
Cold Box Manufacture

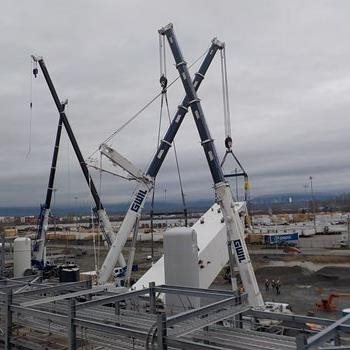

Chart’s primary Cold Box fabrication location is a 40-acre coastal facility in New Iberia, Louisiana, USA, providing direct access to the US inter-coastal waterway and the Gulf of Mexico.

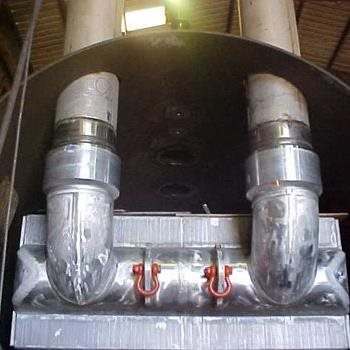

Chart’s patented Core-in-Kettle®, introduced in 1989, further extends the use of plate fin heat exchanger technology in a range of petrochemical and natural gas processes as an alternative to traditional shell and tube kettle reboilers. Instead of a tube bundle, the external vessel houses one or more plate fin heat exchangers and provides around 10 times more heat transfer surface area and up to 20 times more ‘UA’ than the equivalent tube and shell unit. The superior heat transfer performance can be utilized to produce a significantly more compact unit for new installations, or considerably more performance can be provided to existing installations by replacing the tube bundle with a BAHX retro-fitted into the same shell.
With >20 years specialty cryogenic engineering and welding expertise, the acquisition of Fronti brings another cryogenic industry partner into the Chart portfolio, expands our cold box manufacturing capability and capacity, including hydrogen and helium liquefiers and creates the foundation for our mid-Atlantic flexible manufacturing location.
Cryo-Lease Solutions for Heat Transfer Products
Cryo-Lease is available on our heat transfer products and systems many of which are custom built items. Examples include heat exchangers, axial flow fans, liquefaction plants and more.
Cryo-Lease reduces initial capital expenditure and is available for new plants, equipment replacements, refurbishments and upgrades.
Technical and Sales Library
View and download sales literature, technical manuals and more
Brazed Aluminum Heat Exchangers
Brazed Aluminum Heat Exchangers - After Sales Support
BAHX in LNG Processes
A Key to LNG was first published in Hydrocarbon Engineering in October 2017.
BAHX Reboiler Best Practice
Best practice for design and operation of reboilers with plate-fin brazed aluminum heat exchangers (BAHX).
First printed in Gas Processing & LNG - March/April 2019.
Brazed Aluminum Heat Exchangers for Process Optimization
Keeping BAHX at Peak Performance Using DCS Analysis
How leveraging insights from distributed control systems can keep heat exchangers operating at peak performance.
First published in Hydrocarbon Engineering (December 2019).
Scaling up LNG Brazed Aluminum Heat Exchangers for mid-scale LNG Liquefaction
First published in LNG Industry March 2016.
Smart Layer – A Smarter System
Explaining Chart's passive system for detecting end of service life for plate fin heat exchangers.
First published in Hydrocarbon Engineering (December 2018).
BAHX Installation, Operation and Maintenance Manual - January 2022 edition.
To learn more, to optimize your next project, for new or replacement units, application advice or to discuss our aftermarket services, please don't hesitate to contact us. To connect with a specialist call us direct or click the 'Contact Us' button, complete a short form and we'll be in touch.
+1 608 787 3333
Cryogenic Nitrogen Rejection Unit

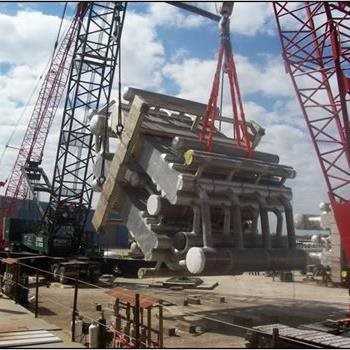

Weighing 1376 tons and containing over 7 miles of welding, these cold boxes were built and shipped from our facility in New Iberia, LA to a natural gas processing plant in the State of Qatar.
SCF/D of natural gas processing capacity
Brazed aluminum heat exchangers are at the heart of our standard and modular plant solutions for small- and mid-scale LNG and cryogenic nitrogen rejection.
