Engineered for Efficiency – Built to Last

Chart's bulk cryogenic storage systems are custom engineered to meet your application's specifications. Chart's complete system solution package ensures quality liquid or gas to keep your processes operating at peak efficiency. Built for long-term integrity and industry-leading efficiency, these systems give you the highest performance at the lowest operating cost.

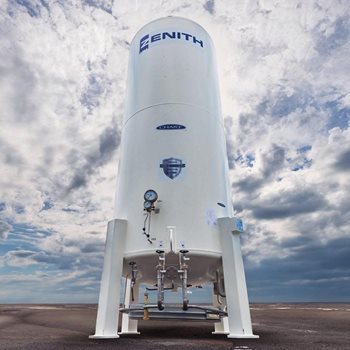

Bulk Tank Systems

Each Chart tank is engineered with a high-degree of standardization for cost efficient production and to keep delivery times short. A range of bolt-on modular options ensure that our standard tanks cater for >95% of customer requirements. Further customization available on request.

  • Complete range of tank sizes from 1500* to 264,000 US gallons (6,000 to 1,000,000 liters) at maximum allowable working pressures between 175 and 500 psig (12 and 37 barg)
  • Horizontal and vertical configurations
  • Perlite or Composite Super Insulation™ system, which ensures high thermal performance, extended hold times, low life-cycle costs and low weight for reduced operational and installation costs
  • Double jacketed construction comprising:
    • Stainless steel inner vessel
    • Carbon steel outer shell with integrated support and lifting system for simplified transport and installation
    • Durable coating that provides maximum corrosion resistance and meets environmental compliance standards

Superior Design & Engineering

  • Modular piping systems combine high performance, durability and low maintenance
    • Reduced number of joints minimizes the risk of external leaks and facilitates simplified installation
    • Easy access to control valves and instrumentation
      • A comprehensive range of safety features afford maximum protection to operators and equipment
      • Meet seismic requirements
      • Engineered, manufactured and tested in accordance with all major international design codes and associated regional requirements
      • Unrivaled engineering and manufacturing capacity
      • World class facilities strategically located in centers of demand
      • Dedicated range for carbon dioxide (CO2)
* a smaller capacity 900 US gallon (3,400 liter) capacity tank is available as standard from our European facilities and a 792 US gallon (3,000 liter) capacity tank is built in India.

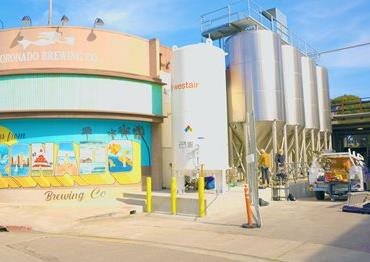

Bulk Tanks for CO2 Service

We use the same high integrity vacuum insulation systems for our carbon dioxide storage tanks. An all-metal outer jacket eliminates insulation deterioration from water condensation that is commonly found in foam insulated tanks, especially as they age.

Specialty Fill Plant Storage Tanks

Siphon 100® and Siphon Zero specialty bulk tanks offer increased efficiencies and zero losses by utilizing 100% of the liquid content 100% of the time. They are the benchmark standard for filling high pressure cylinders, liquid cylinders and mobile equipment at industrial gas fill plants.

Chart Vacuum Technology®

At Chart we have always taken pride in developing the best thermal insulation system possible in our cryogenic bulk tanks. Our Composite Super Insulation™ and Chart Vacuum Technology® is at the core of why Chart bulk tanks are recognized around the world as the premier cryogenic bulk storage tank.

Options & Accessories

Optimize your liquid storage and gas delivery system with our Vaporizers, Vacuum Insulated Pipe (VIP), OnSite™ Telemetry System and Tank-Tel® Liquid Level Gauge.

}

Global Reach

Engineering and manufacturing facilities in North America, Czech Republic, China, Italy and India. All facilities provide the same high quality engineered products, service packages and accessories with single source accountability and Chart's best in class service.

Chart acquired VRV and continues to offer VRV product lines, including the Eagle range of cryogenic tanks.

Each Chart tank is engineered with a high-degree of standardization for cost efficient production and to keep delivery times short. A range of bolt-on modular options ensure that our standard tanks cater for >95% of customer requirements. Further customization available on request.
