Safe & Reliable Fueling for all NGVs

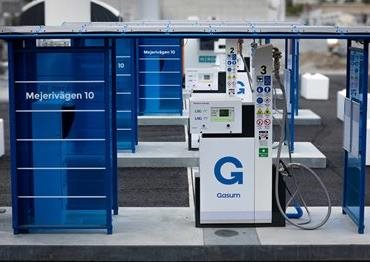

Chart vehicle fueling stations are dedicated to safely and reliably delivering fuel for all natural gas vehicles (NGV) and fleets. LNG, including liquid biogas (LBG), is typically used for heavy duty vehicles such as trucks, buses and special handling vehicles, and CNG for passenger cars and vans.

Complete range of sizes and options

From relocatable stations, privately owned ones for small fleets, all the way to ones with multiple dispensers open to both the public and fleet operators. All stations are offered with a comprehensive package of options enabling the customer to tailor according to individual requirements. Modular design permits multi-stage investment and expansion according to capacity requirements.

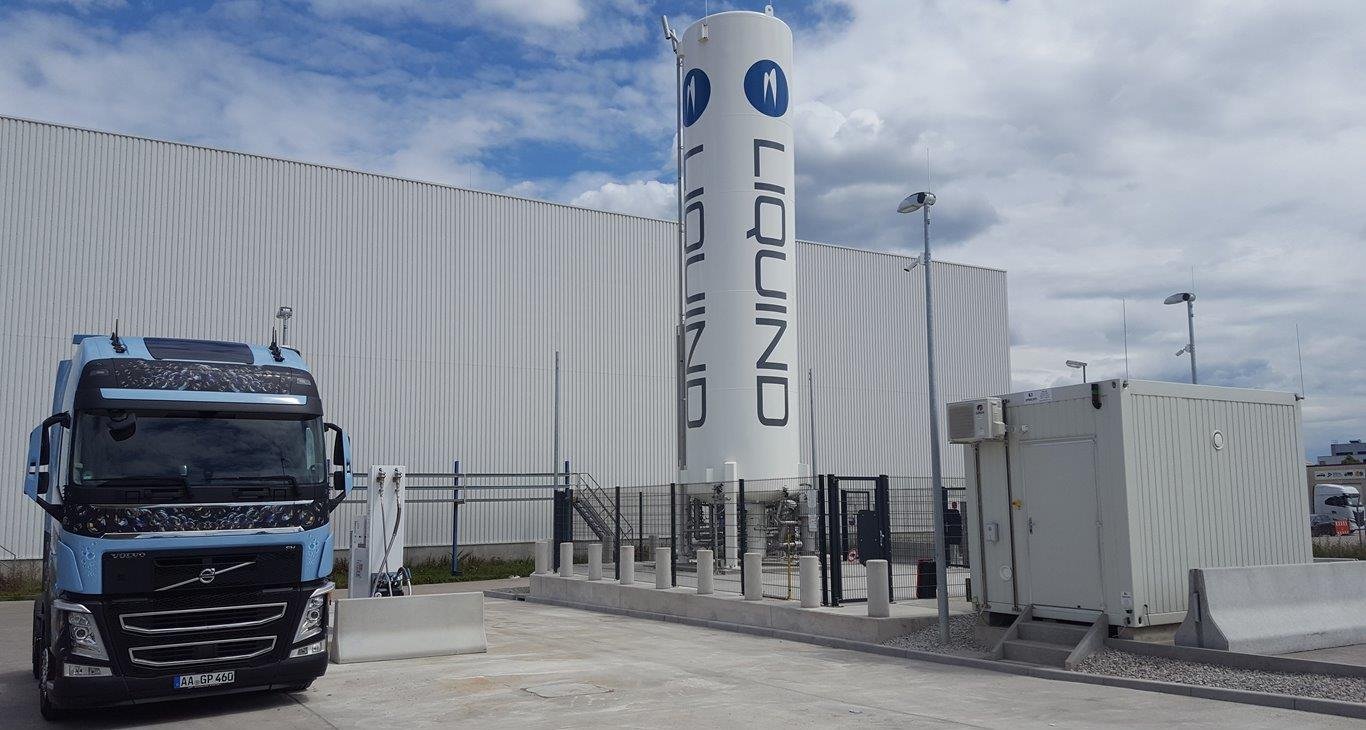

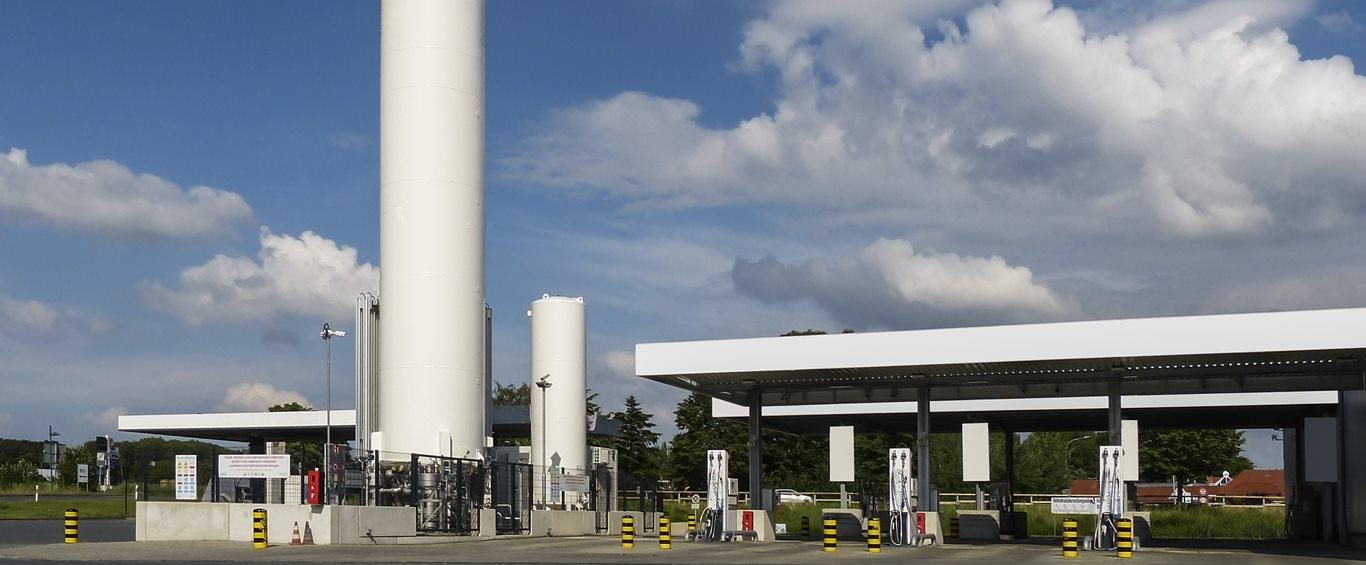

LNG Fueling Station

Chart permanent stations are structurally similar to gasoline and diesel stations and both types deliver liquid fuel. However, because LNG is stored and dispensed as a super-cooled liquid it requires Chart specialty cryogenic equipment, technology and expertise. Safety, reliability, the environment and total cost of ownership are paramount and our designs incorporate a number of associated features. The stations offer fully automated operation, remote control access and are loaded with our latest technology for maximum accuracy and operational comfort.

An additional CNG module can be incorporated to offer the complete natural gas fueling service for LNG, CNG and bio-gas vehicles.

Chart provides a full turnkey package including engineering, equipment manufacturing, delivery, installation and commissioning.

Skid Mounted Stations

Targeted at vehicle fleet bases, remote locations, small ports and also provide an excellent temporary fueling solution. All station components are skid mounted to facilitate transport and reduce site work.

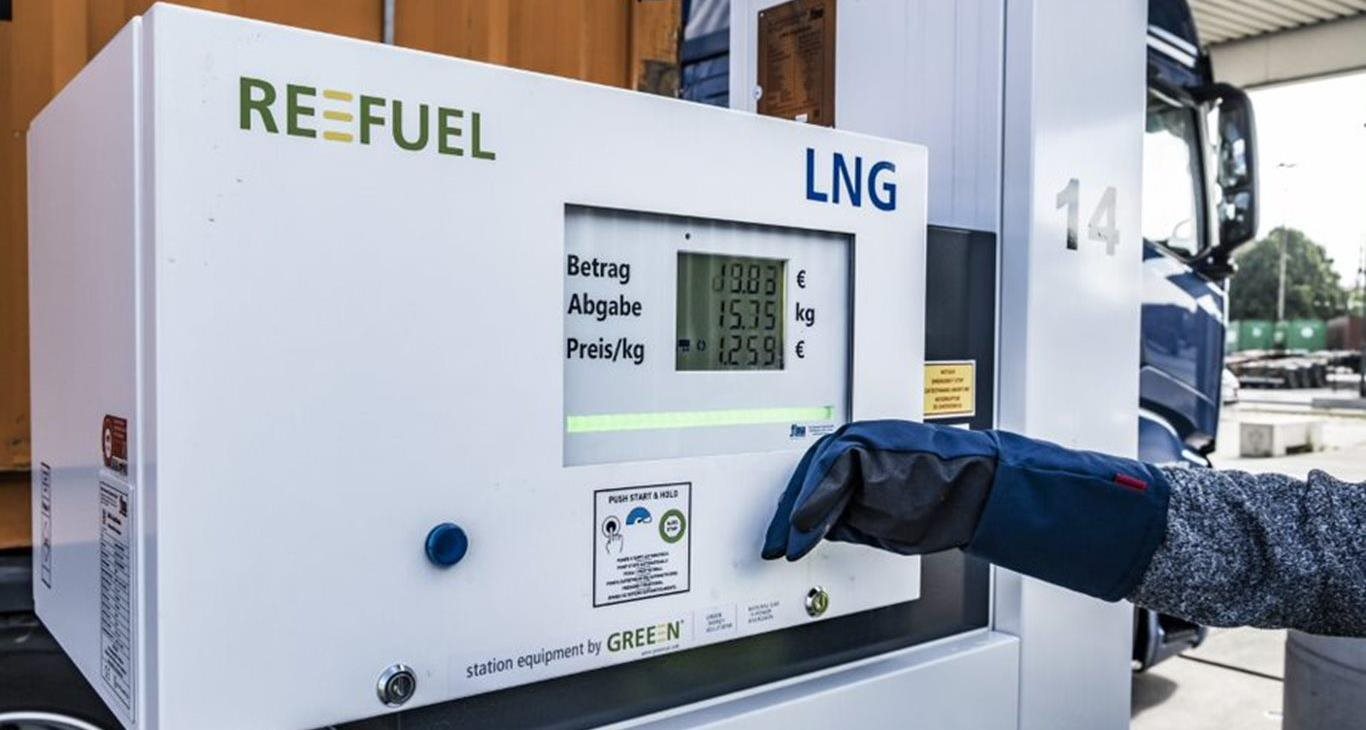

DynaFlow® LNG Dispensers

DynaFlow® LNG Dispensers are manufactured in Germany by our Flow Instruments subsidiary. This technologically advanced dispenser delivers LNG fuel to trucks and city buses accurately, quickly and reliably. DynaFlow 3000 provides accurate flow measurement by dynamically measuring the density of the LNG in real time – it has no moving parts and no diversion of metered flow.

Total supply in China

In 2013 Chart acquired Nanjing Xinye Electric Engineering Co., Ltd., a specialist in electrical control systems and fuel dispensing. The combination of Chart and Nanjing Xinye technologies enables Chart's Changzhou facility to provide complete LNG fueling solutions incorporating the fueling station, dispensers and electronic control and metering systems.

LNG MicroFueler

Utilizes a palletized, transportable liquid cylinder to provide a simple and convenient solution for LNG storage and associated fueling and defueling of LNG vehicle tanks. Simple to operate and ideally suited to start-up projects and as an emergency stand-by in case of a vehicle defect.

Video Library

}

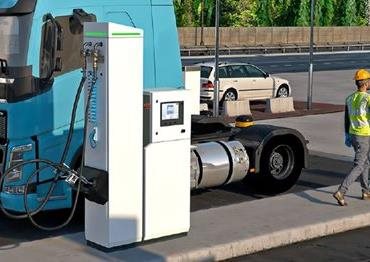

Unveiling Dynaflow 4

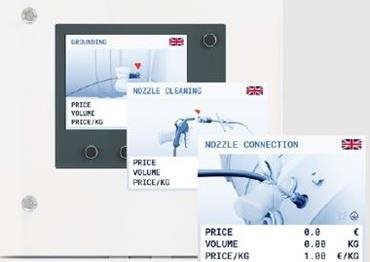

Dynaflow 4 is a totally re-engineered fuel dispenser for LNG / LBG fueled vehicles that maximizes availability for owners and provides drivers with an enhanced and familiar fueling experience.

}

China Dual Nozzle Dispenser

Collaboration between our Changzhou (meter column research and development) and Xinye (dispenser manufacturing) has created a new dual-nozzle LNG dispenser for fueling LNG powered vehicles in China. The product provides an enhanced user experience and incorporates a new generation of information management and computer systems for the new ‘Intelligent LNG’ fueling station system.
